Understanding Metrology: Essential Measurement Practices for Industries

Metrology, the science of measurement and traceability, plays a crucial role in ensuring product quality across various industries. Understanding the basics of metrology can significantly enhance a company’s ability to meet customer requirements and maintain high standards. This article delves into the essential aspects of metrology, including measurement tools, calibration fundamentals, and key terminology.

Measurement Tools and Their Importance

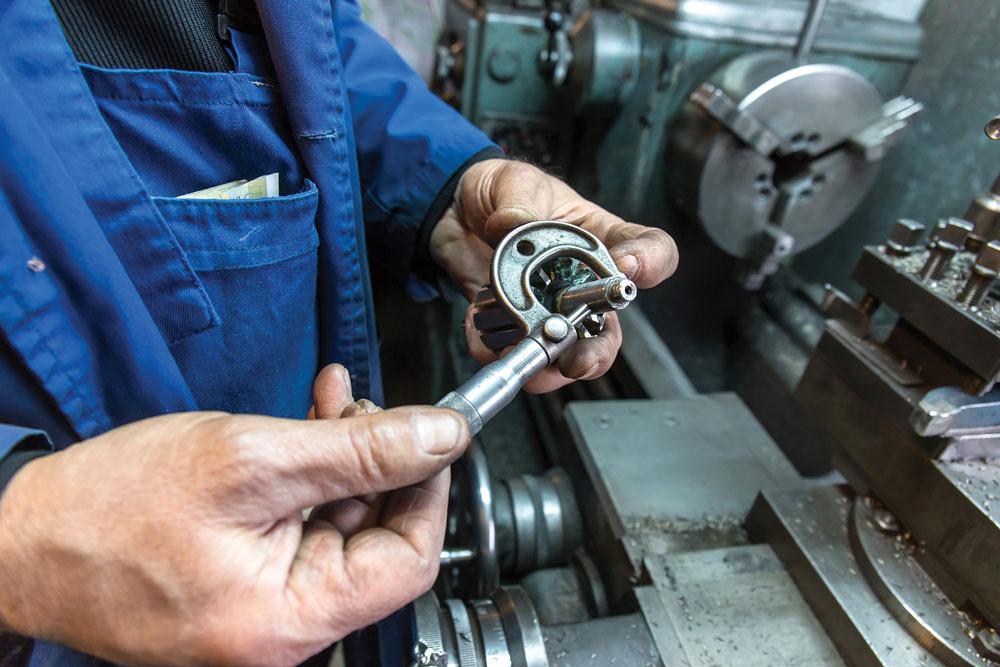

Every measuring device is designed with specific tolerances set by the manufacturer. The discrimination of a measuring tool, which refers to its ability to differentiate between minor variations in measurements, is vital for achieving precise results. For instance, devices such as micrometers and calipers are often used in applications demanding tight tolerances, such as automotive engines or jet turbines. In these scenarios, inaccuracies can lead to severe consequences including reduced power efficiency or increased wear on components.

To ensure accuracy, it is generally recommended that a measuring instrument’s discrimination be at least one-tenth of the range being measured. This guideline, known as the 10-to-1 rule, stipulates that if a part is designed to be 10 mm with a tolerance of ±1.0 mm, the measuring device must be capable of measuring at an accuracy of at least 1 mm. This requirement ensures the measurement’s reliability, which is critical for maintaining customer satisfaction and reducing costly rework.

Calibration and Its Critical Role

Calibration of measurement equipment is as important as selecting the appropriate tools. A common misconception is that calibration only needs to occur once a year. In reality, the frequency of calibration should be informed by historical data and the specific conditions under which the equipment is used.

Several factors influence calibration frequency. For instance, measuring instruments stored in controlled environments will require less frequent calibration than those subjected to rough handling. Additionally, if a device is used multiple times a day for critical applications, more frequent calibration is advisable. As noted by Anthony Mannella, CEO of ISO Certification Consultants Inc., ensuring that measurement tools are both properly calibrated and capable of achieving the necessary discrimination is vital for maintaining consistent quality across products.

Key Terms in Metrology

Understanding core metrology terms is essential for anyone involved in measurement activities. Here are five fundamental concepts:

1. **Repeatability** – This refers to the variation in measurements taken by a single operator using the same instrument on the same part under identical conditions. For example, if an operator measures a part five times with the same caliper, the variation among those readings reflects repeatability.

2. **Reproducibility** – This term indicates the variation in measurements when different operators use the same instrument to assess the same part. If three inspectors measure the same part using the same micrometer, reproducibility accounts for the variation in their average readings.

3. **Bias** – Bias is the difference between the average of measured values and the true or reference value. For example, if a gauge consistently measures 0.02 mm larger than the certified standard, the bias is +0.02 mm.

4. **Linearity** – This concept refers to the consistency of bias across the entire measurement range of an instrument. A calliper may show accuracy at one measurement but may be off at another, demonstrating poor linearity.

5. **Stability** – Stability assesses the variation in measurements of the same part taken over time by the same operator using the same instrument. If a measuring device drifts in readings over weeks, its stability is considered poor.

As industries increasingly rely on precise measurements, a firm grasp of metrology fundamentals is indispensable. Part II of this series will explore calibration and traceability in greater detail, rounding out the foundational knowledge necessary for effective measurement practices. Understanding these principles can help organizations enhance their quality control measures and ultimately improve customer satisfaction.
