Understanding Metrology: Key Principles and Calibration Insights

Metrology, the science of measurement and traceability, plays a crucial role in various industries by ensuring that products meet customer specifications. This foundational discipline helps businesses maintain quality and reliability in their operations. Understanding the basics of metrology, along with effective calibration practices, can significantly enhance operational efficiency and reduce costs.

Core Concepts of Metrology

At its essence, metrology encompasses a range of principles that govern how measurements are taken and assessed. Measurement System Analysis (MSA) is a key statistical method used to evaluate the accuracy and reliability of measurement systems. It considers several factors that influence measurement quality, including repeatability, reproducibility, bias, linearity, and stability.

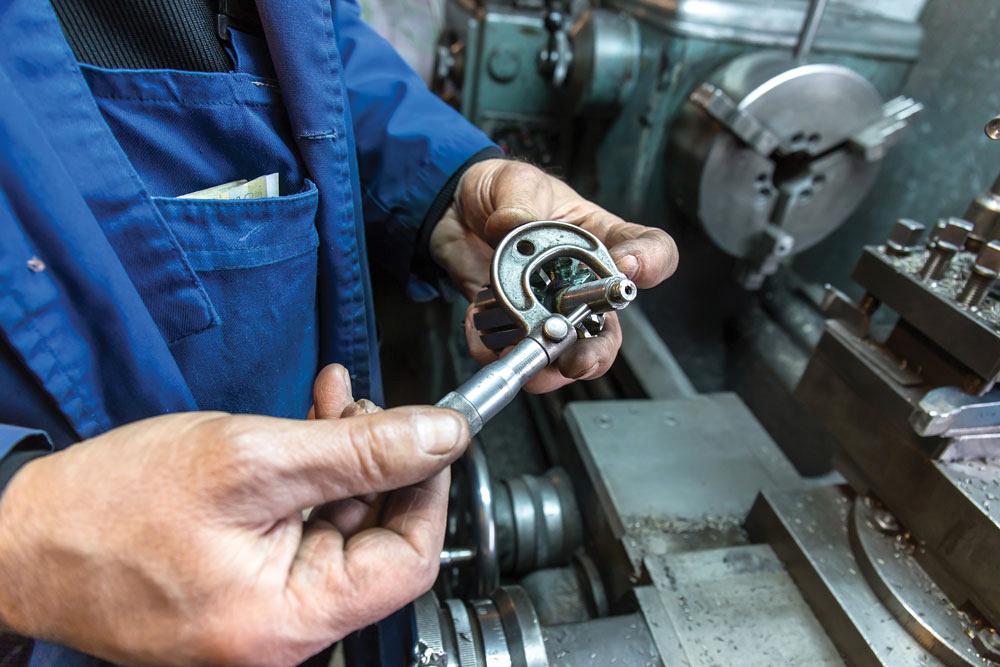

For most users of basic measuring tools such as micrometers and calipers, the focus often lies in the repeatability and accuracy of their measurement systems. Repeatability refers to the ability of a single operator to obtain consistent measurements using the same instrument under identical conditions, whereas reproducibility reflects the consistency of measurements taken by different operators using the same device.

The importance of measurement discrimination cannot be overstated. Discrimination defines a measuring device’s ability to detect small differences in the object being measured. Typically, the smallest graduation on an instrument’s scale indicates its discrimination level. For example, in high-precision applications—like automotive engines and jet engines—tight tolerances are essential. A common guideline is the “10-to-1 rule,” which states that the measurement instrument should be at least ten times more accurate than the specification range.

In practical terms, if a customer requires a component to be 10 mm with a tolerance of ±1.0 mm, the measuring device should accurately discriminate to 1 mm or better. This ensures that measurements remain within acceptable limits, preventing costly errors and customer dissatisfaction.

Calibration Essentials and Best Practices

Selecting the right measuring tools is only part of the equation; proper calibration is equally critical. Regular calibration of measuring equipment helps maintain accuracy and reliability. A common misconception is that annual calibration suffices for all instruments. This practice may be acceptable for tools used infrequently and stored properly, but the frequency of calibration should be informed by historical data and actual usage conditions.

Several factors can influence calibration needs:
– **Storage Environment**: Measuring equipment should be kept in a clean, temperature-controlled space. Instruments stored carelessly or subjected to rough handling will require more frequent calibration.
– **Critical Measurement Requirements**: For components that are critical to safety or performance, increased calibration frequency is advisable to mitigate risks.
– **Usage Frequency**: Devices used multiple times daily may drift out of calibration quicker than those used less frequently.

By prioritizing calibration and ensuring that instruments meet the required standards of discrimination and accuracy, businesses can establish a process that consistently yields high-quality products. This commitment to metrology not only enhances operational efficiency but also solidifies customer trust.

In summary, understanding foundational metrology terms and implementing effective calibration practices can significantly impact quality control in any manufacturing environment. As industries continue to evolve, the principles of metrology will remain vital for maintaining high standards and achieving customer satisfaction.

In the next installment, further insights into calibration and traceability will be explored, providing a comprehensive understanding of metrology’s role in modern industry.
